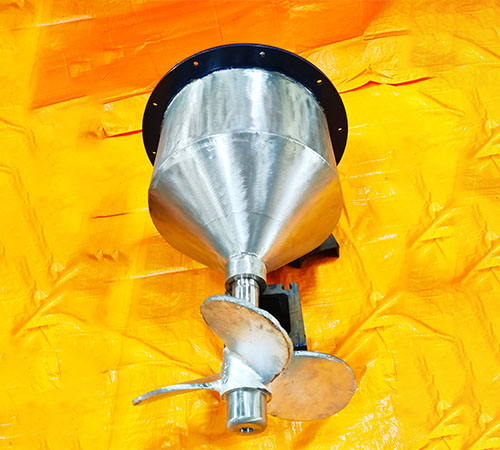

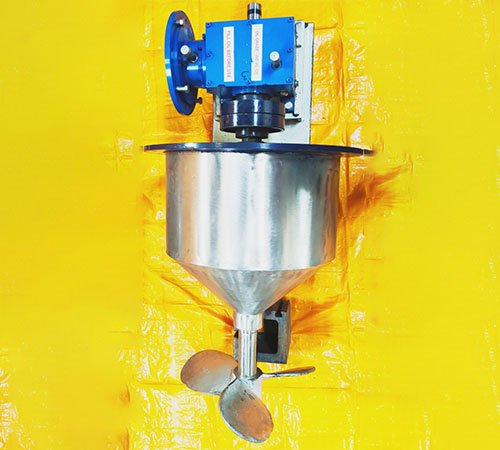

Chest Agitator
The chest agitator is suitable for mixing & agitation in storage chest with up to 5% consistency in the propeller area. Combined with its optimized propeller blades and our extensive experience designing pulp chests, we can offer an optimal solution for effective agitation. With better blade angles, the agitator provides maximum flexibility, as well as the capability to handle a wide range of motors. Depending on the design, they can be driven by belts or gearboxes.
Key Features -
- Energy-efficient
- Maintenance is easy and low-cost
- Intensive homogeneous mixing of pulp slurries
Model | AS600 | AS800 |
---|---|---|
Vane Diameter (mm) | ɸ600 | ɸ800 |
Consistency (%) | Up to 5% | Up to 5% |
Chest Volume (m3) | 30-60 | 60-120 |
Motor Power (kw) | 5.5 to 7.5 | 7.5 to 11 |
Motor RPM | 980 | 980 |
